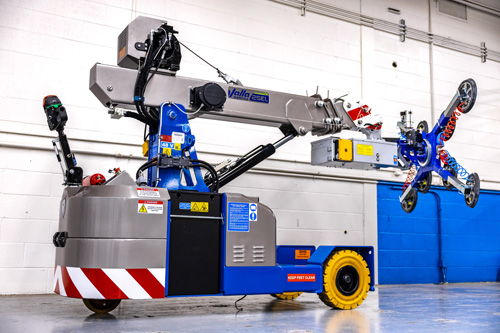

Valla Manipulator

Valla Glass Manipulator is the easiest way to handle glass and other non-porous materials at the job site. With a maximum capacity of 1,320 lbs, it can handle glass panels with ease. Featuring a 360° continuous rotation, ±35° side to side slewing and 120° tilting with capability to install glass flat both overhead and at the ground level with our adjustable adaptive plate. Also available are the curved glass bridge enabling the manipulator to handle both convex and concave glass, and various suction cup options to handle other non-porous materials such as steel, fiberglass and solar panels.

• Retrofittable to Previous Generation Valla 19 & Valla 25
• No External Power Source Required
• Manipulator with Radio Remote
• Plug & Play for Valla 25 and Valla 19
• 360˚ Continous Rotation
• 120˚ Tilting
• ±35˚ Slewing

Working Load Limit:

• Flat glass: 1,320 lbs (8 suction pads w/ Ø 12” pads)
• Convex curved glasses: 990 lbs (12 suction pads with Ø 11” pads)
• Concave curved glasses: 1,320 lbs (12 suction pads with Ø 11” pads)

Manipulator Weight:

• Approx: 320 lbs with suction frame for flat glass panels 8 suction pads
• Approx: 375 lbs with suction frame for curved glass panes 12 suction pads

Movements:

• Rotate: Continous 360°
• Tilt: 0 – 120°
• Swivel: ±35°

Suction pads:

• 8 pcs. Ø 12” or 12 pcs. Ø 11”. Available with Flat or Curved Glass Frame

Vacuum generation:

• Vacuum pump

Energy supply: Self-Contained Power, No external hook-ups required. 24V onboard battery Operation:

• Radio remote control

Featuring a self-contained battery. Requires no special attachments on the crane. All of the vacuum and manipulation are done using the onboard 24V quick replacement battery. Battery life is dependent on use, manufacturer projects between 8-12 hours. *Specifications are Subject to Change
